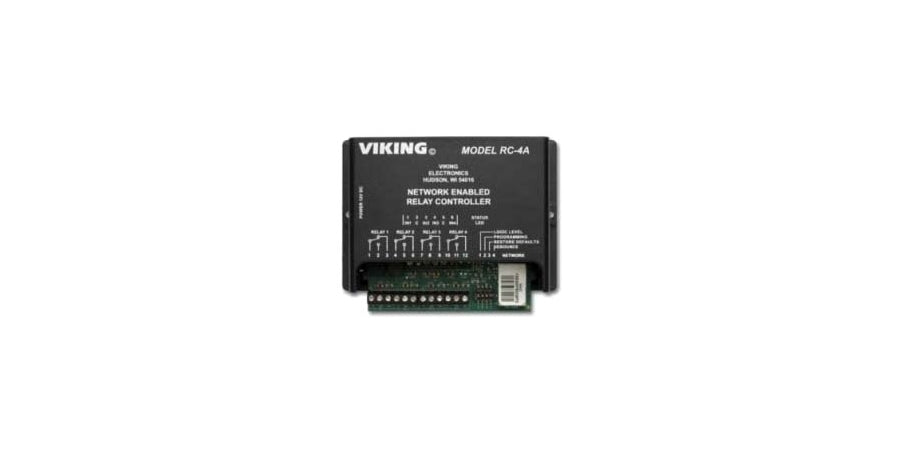

Viking Electronics RC-4A | Network Enabled Relay Controller, 120 VAC, 12 VDC
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Viking Electronics RC-4A | Network Enabled Relay Controller, 120 VA...
Description
Description
The RC-4A network enabled relay controller provides networked control of four relays via an easy-to-use web interface. The same interface can be used to check the status of four contact closure inputs. Relays can be toggled on or off or activated for a length of time. The RC-4A can be configured to work as a remote relay for Viking VoIP Series phones, controlling door strikes and gates when a remote relay is required for security reasons. It can also be programmed to send an email or text message in response to a change in one or more of the sensor inputs. Two RC-4A's can be set up so that activity on a sensor input of one unit will automatically send a message across the network to activate one of the relays on the other unit. Two levels of user access permit selected users to have full operational and programming rights while others have operational control but not programming capability.
Viking Electronics - RC-4A - Features
- Terminal strip connections for normally open, normally closed, and common for all four relays
- Relays can be toggled or timed closures of from 1 to 99 seconds can be activated
- Terminal strip connections for all four sensor inputs
- Notification by email or text message of sensor input state change
- Can be used as a secure remote relay for Viking VoIP series phones
- Remote Interaction: sensor change on one RC-4A triggers relay activation of a second RC-4A across network
- Ready-to-use webpage control interface
- Encrypted login
- Two levels of access based on login:
- Administrator (full access)
- Guest (programmable limits)
- Relay names, input names and input status can be customized on webpage
- Firmware updatable
Specifications
Specifications
Viking Electronics - RC-4A - Product Categories
- Audio, Visual and Telephony
- Audio and Visual
- Intercom
- Intercom Accessories
Viking Electronics - RC-4A - Applications
- Secure building entry
- Heating/cooling equipment
- Pumps and fans
- Security system
- Gates
- Lighting
- Emergency tones
Viking Electronics - RC-4A - Specifications
| Manufacturer Name | Viking Electronics |
|---|---|
| Manufacturer Part Number | RC-4A |
| Item Description | Network Enabled Relay Controller, 120 VAC, 12 VDC |
| Connection | (1) 12 Position Screw Terminal Block, (1) 6 Position Elevated Screw Terminal Block |
| Current | 500 mA |
| Dimensions | LxWxH: 5-1/4 x 3-1/2 x 1-3/4 in. |
| Height | 3-1/2 in. |
| Interface | (1) RJ45 10Base-T/100Base-TX |
| Length | 5-1/4 in. |
| Product Type | Network Enabled Relay Controller |
| Temperature Rating | 32 to 90 F |
| Voltage | 120 VAC, 12 VDC |
| Width | 1-3/4 in. |
