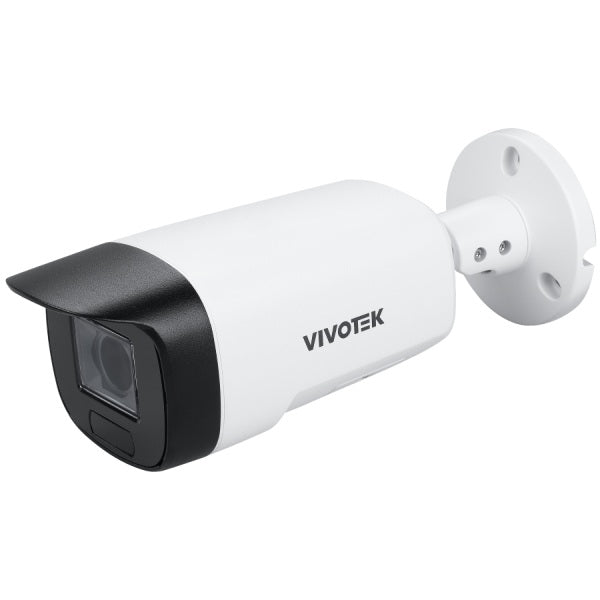

Vivotek IB9389-EHTV-V3 | 5MP Bullet Camera
Regular price
$756.53
Unit price
Brand: Vivotek
|
SKU:
10567912
Regular price
$756.53
Unit price
Description
Description
Vivotek IB9389-EHTV-V3 | 5MP Bullet Camera
Vivotek - IB9389-EHTV-V3 - Features
- AI-powered Smart Motion Detection and Smart VCA
- RealSight Engine for unparalleled visibility
- Built-in IRs up to 40M
- IP66/IP67/IK10 Protection
- Signed Firmware, Secure Boot, TPM 2.0
Specifications
Specifications
Vivotek - IB9389-EHTV-V3 - Specifications
| CPU | Multimedia SoC (System-on-Chip) |
|---|---|
| Flash | 8 GB |
| RAM | 2 GB |
| Image Sensor | 1/2.8" Progressive CMOS |
| Max. Resolution | 2560x1920 (5MP) |
| Lens Type | Motorized, Vari-focal, Remote Focus |
| Focal Length | f = 2.8~12 mm |
| Aperture | F1.6 ~ F3.3 |
| Iris Type | P-iris |
| Field of View | 95.4° ~ 28.7° (Horizontal) 68.8° ~ 21.5° (Vertical) 129.6° ~ 35.9°(Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut filter | Yes |
| Illuminators | Built-in IR illuminators, effective up to 40 meters with Smart IR, IR LED*4 |
| Minimum Illumination | 0.04 lux @ F1.6 (Color) 0.005 lux @ F1.6 (B/W) 0 lux with IR illumination on |
| Tilt Range | 80° |
| Rotation Range | 350° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| Storage | Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS) |
| Built-in Installation Aids | Remote focus, remote zoom, pixel calculator |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 2560x1920 (5MP) |
| Maximum Streams | 3 video streams (Up to 8 configurable profiles) |
| Main Stream | 30fps @2560x1920,2048x1536,1920x1440,1600x1200,1280x960,800x600,640x480 (4:3)30fps @ 2560x1440, 1920x1080, 1600x904, 1360x768,1280x720, 640x360 (16:9)60 fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9) |
| 2nd Stream | 30fps @ 1920x1440, 1600x1200, 1280x960, 800x600, 640x480 (4:3); 30fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9)60 fps @ 1280x720, 640x360 (16:9) |
| 3rd Stream | 30fps @ 1280x960, 800x600, 640x480 (4:3); 30 fps @ 1280x720, 640x360 (16:9);60 fps @ 1280x720, 640x360 (16:9) |
| S/N Ratio | 55 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and constant bit rate control, Smart Stream III |
| Audio Capability | Two-way audio (Full duplex) |
| Compression | G.711, G.726, MPEG-2 AAC-LC |
| Interface | Built-in microphone External microphone Input External line output |
| Effective Range | 5 meters |
| Users | Live viewing for up to 10 clients |
| Security | Access list, CSRF protection, digest authentication, HTTPS , IEEE 802.1x, Password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management, Built-in FIPS 140-2 Level 2 certified Trusted Platform Module (TPM) |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, , NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45)*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Profile G, S, T supported, specification available at www.onvif.org |
| Compute Capability | SoC with built-in hardware deep learning accelerator |
| Application | Deep Learning VCA (Smart Motion Detection, Smart VCA)Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection |
| Application available with license | Running detection, Parking Violation Detection, Restricted Zone DetectionSupport for more analytic applications and free trial, please visit vivotek.com/video-analytics |
| RealSight Engine | Smart IR III, Deblur, WDR, White Balance, Exposure Control |
| VADP Package | Trend Micro (Default, 3-year free trial) |
| Video Motion Detection | Motion Detection (Five-window video motion detection) |
| Event Trigger | Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot |
| Event Action | Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD cardFile upload via email, HTTP, FTP/SFTP, NAS server, SD card |
| Connectors | RJ-45 cable connector for 10/100 Mbps Network/PoE connection Audio line input Audio line output Digital input: 1 Digital output: 1 |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af PoE Class 3 |
| Power Consumption | Max. 12.4W/ 9.6W (IR on/off) |
| Dimensions | ø 92 x 258.5 mm |
| Weight | 1.04 kg |
| Operating Temperature | Starting Temperature: -20°C ~ 50°C (-4°F ~ 122°F) Working Temperature: -35°C ~ 60°C (-31°F ~ 140°F) (IR off) -35°C ~ 50°C (-31°F ~ 122°F) (IR on) |
| Humidity | 98% RH (non-condensing) |
| Operating System | Microsoft Windows 10/8/7Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above |
| Other Players | VLC: 1.1.11 or above |
| Packing Contents | Quick installation guide, alignment sticker, screw pack, cable gland |
| Detection (25PPM/ 8PPF) | Wide: 67.0 m (219.9 ft)Tele: 205.7 m (674.8 ft) |
| Observation (63PPM/ 19PPF) | Wide: 26.7 m (87.5 ft)Tele: 81.6 m (267.8 ft) |
| Recognition (125PPM/ 38PPF) | Wide: 13.3 m (43.7 ft)Tele: 41.0 m (134.4 ft) |
| Identification (250PPM/ 76PPF) | Wide: 6.6 m (21.7 ft)Tele: 20.5 m (67.1 ft) |
