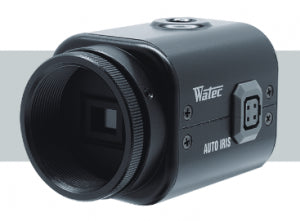

Watec WAT-3500 | 1/2.8” Multi-Function Compact High Sensitivity Analog B&W Camera
Watec - WAT-3500 - Features
- 1/2.8 inch BSI CMOS image sensor with hight sensitivity
- Min. illumination : 0.0001lx F1.4 (AGC ON=72dB, Shutter=OFF) 0.000007lx F1.4 (AGC ON=72dB, Shutter=x15)
- Advanced setting available by OSD (On Screen Display) through an optional remote controller
Specifications
Specifications
Watec - WAT-3500 - Specifications
| Brand Name | Watec |
|---|---|
| Manufacturer Part Number | WAT-3500 |
| Item Description | 1/2.8” Multi-Function Compact High Sensitivity Analog B&W Camera |
| Sensor | 1/2.8 inch BSI CMOS |
| Video outputs | Composite vidéo (PAL or NTSC) |
| Number of effective pixels | 1945(H) × 1097(V) |
| Resolution | 570TVL(Center) |
| Minimum illumination | 0.0001 lx F1.4 (AGC ON=72dB, Shutter=OFF) / 0.000007 lx F1.4 (AGC ON=72dB, Shutter=x15.) |
| OSD access | remote controller, RS232 (Pelco D, Pelco P), Communication RS232 (Pelco D, Pelco P, Visca) |
| White balance | ATW, MWB, PWB |
| Back light Compensation | BLC / HSBLC |
| Noise reduction | 3DNR / 2DNR / 3D+2DNR |
| WDR | ON / OFF / Ajustable |
| Other functions avaiable | Defog, Digital Zoom, miror, Freeze, Motion detection, Neg. image, etc.. |
| Lens iris | DC |
| Operating temperature | -10 à +50°C |
| Storage temperature | -30 à +70°C |
| Lens mount | CS mount (Back focus adjustable) |
| Power supply | DC+12 (±10%) |
| Power consumption | 2.52W (210mA) |
| Weight | 78g |
