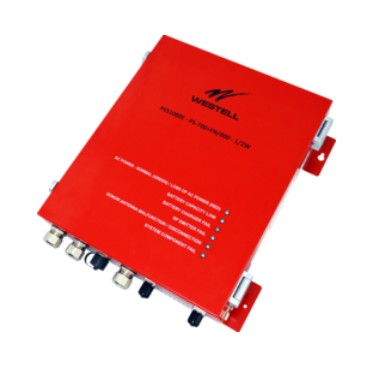

Westell Inc CS14-720-820 | Paging Conditioner, 80 dB Gain, NEMA 4, ...
Description
Description
WESTELL PS51080E and PS71090E BDAs are enhanced versions of the industry favorite PS series with several new features including built-in battery charger, all required NFPA 2019 alarms, built-in annunciator panel, improved cable feed-through options, uplink squelch and an NRTL listing to ANSI/UL 2524, the latest standard for ERCES systems. The integrated BBU greatly simplifies installation and reduces installed costs. Order BBC-03 separately to house batteries. The PS enhanced series BDAs are NFPA 72/1221 compliant with red NEMA Type 4 enclosure, independent control per band, up to 90 dB. of gain and 2 W RF output.
Specifications
Specifications
Westell Inc - CS14-720-820 - Product Categories
- Networking and Wireless
- Wireless
- DAS
- Repeaters/BDAs
Westell Inc - CS14-720-820 - Specifications
| Manufacturer Part Number | CS14-720-820 |
|---|---|
| Manufacturer | Westell Inc |
| Dimensions | WxHxD: 15.74 x 18.89 x 4.92 in. |
| Dynamic Range | 25 dB |
| Gain | 80 dB |
| Mounting Type | Wall |
| NEMA Rating | NEMA 4 |
| Operating Temperature | -30 to +50 C |
| Product Type | Paging Conditioner |
| Type | REPEATER |
| Voltage Standing Wave Ratio | <2:1 |
| Voltage | 110 VAC, 24 to 30 VDC |
