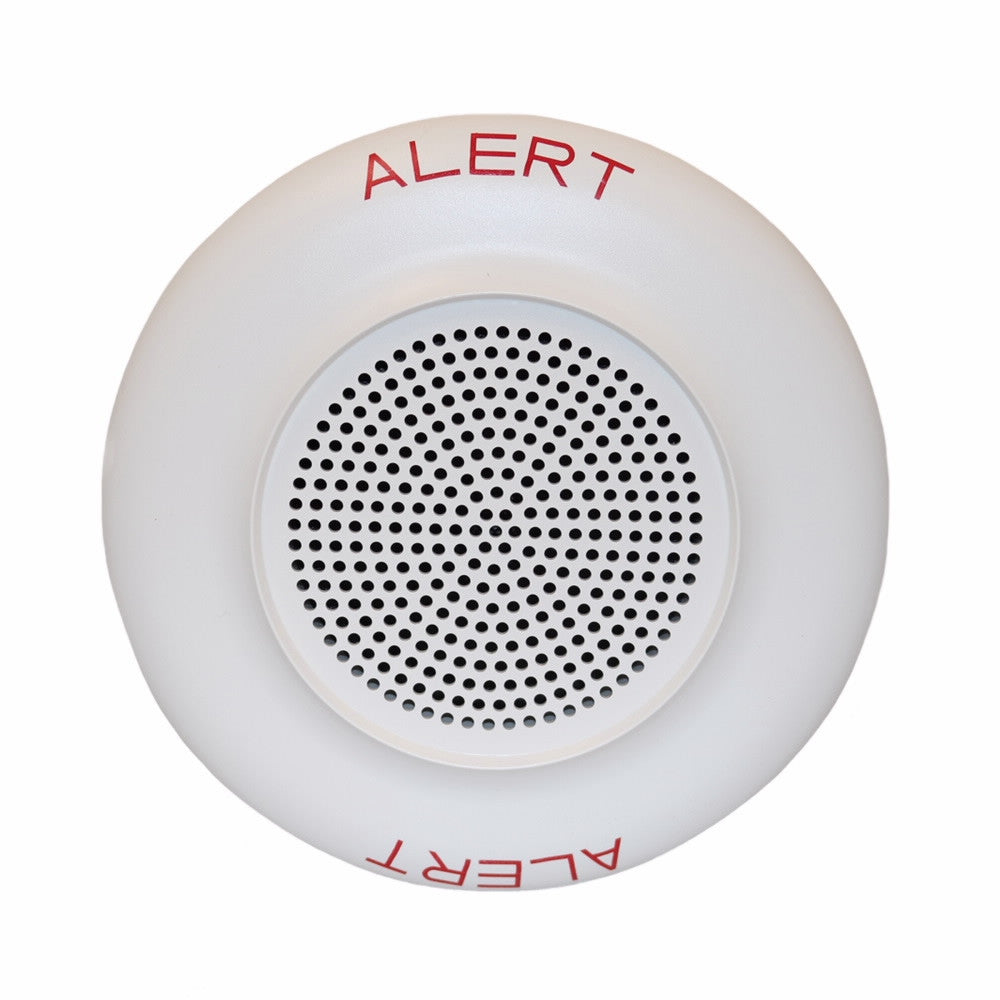

Wheelock E60ALW | Ceiling Fire Alarm Speaker 70V / 25V (High Fidelity, ALERT lettering)
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description

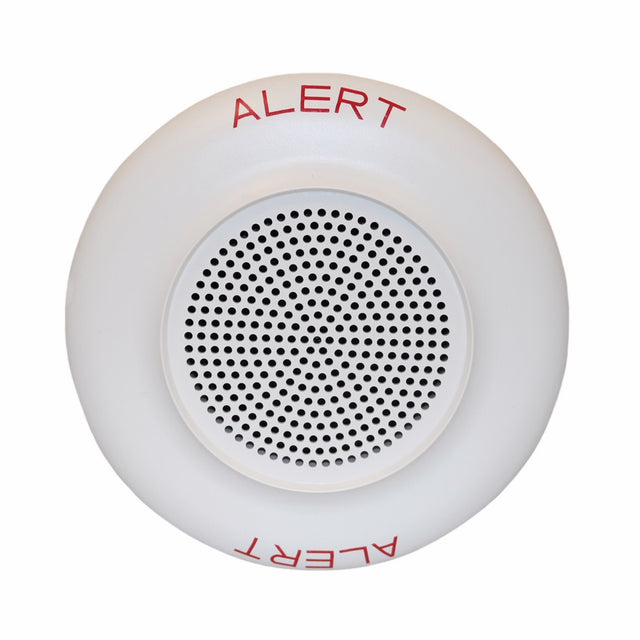

The Wheelock Ceiling Fire Alarm Speaker 70V / 25V (High Fidelity, ALERT Lettering) E60-ALW is a emergency speaker designed for high fidelity sound output for indoor applications. This emergency speaker features leading intelligibility with crisp, clear voice messages and tone signaling, ideal for emergency communications, mass notification, and voice evacuation, making it one of the best emergency speakers in the market.
Series EH Speaker are UL Listed for indoor use under Standard 1971 (Signaling Devices for the Hearing-Impaired) and Standard 1480 (Speaker Appliances), and ULC listed under CAN/ ULC-S526 (Visual-audible Signal Appliances, Fire Alarm) and under CAN/ULC-S541 (Speakers, Fire Alarm). All inputs employ IN/OUT wiring terminals for fast installation using #12 to #18 AWG wiring.
Providing a sleek aesthetic appearance, the wall and ceiling Appliances feature dual Voltage (25/70 VRMS) capability and field-selectable taps from 1/8 to 2 watts. For faster and easier installation, the low profile design incorporates a speaker Mounting plate, and each model has a built-in level adjustment feature and snap-on cover with no visible Mounting screws.
Wheelock - E60ALW - Features
- Easy installation
- Low profile design incorporates speaker Mounting plate for faster and easier installation
- Snap on grille cover with no visible Mounting screws
- Quick installation with IN/OUT screw terminals using #12 to #18 AWG wires
- 4” square backbox prevents wire damage
- High Fidelity Sound Output
- Field Selectable Taps
- 1/8 watt up to 2 watts 25 or 70 VRMS operation
Specifications
Specifications
Wheelock - E60ALW - Specifications
| Part Number | E60-ALW |
|---|---|
| Product Length/Depth | .83 in |
| Product Height | 7.36 in |
| Product Width | 7.36 in |
| Product Weight | 1.382 lb |
| Mounting | Ceiling |
| Housing Color | White |
| Housing Material | UV stabilized plastic |
| Lettering | ALERT |
| Voltage | 25 V, 70 V |
| Operating Temperature | 33.8°F to 120.2°F (0°C to 49°C) & maximum humidity of 93% |
| Compliance And Standards | FCC, CSFM, UL |
| Frequency Range - Min | 400 Hz |
| Frequency Range - Max | 4000 Hz |
| Sound Level (DBA) | Up to 87 dB at 10 ft: 77,79.5,82.5,85,88 |
| TAPS (SELECTABLE) | 1/8 watt -2 watts: 1/8, 1/4 , 1/2 , 1 , 2 |
