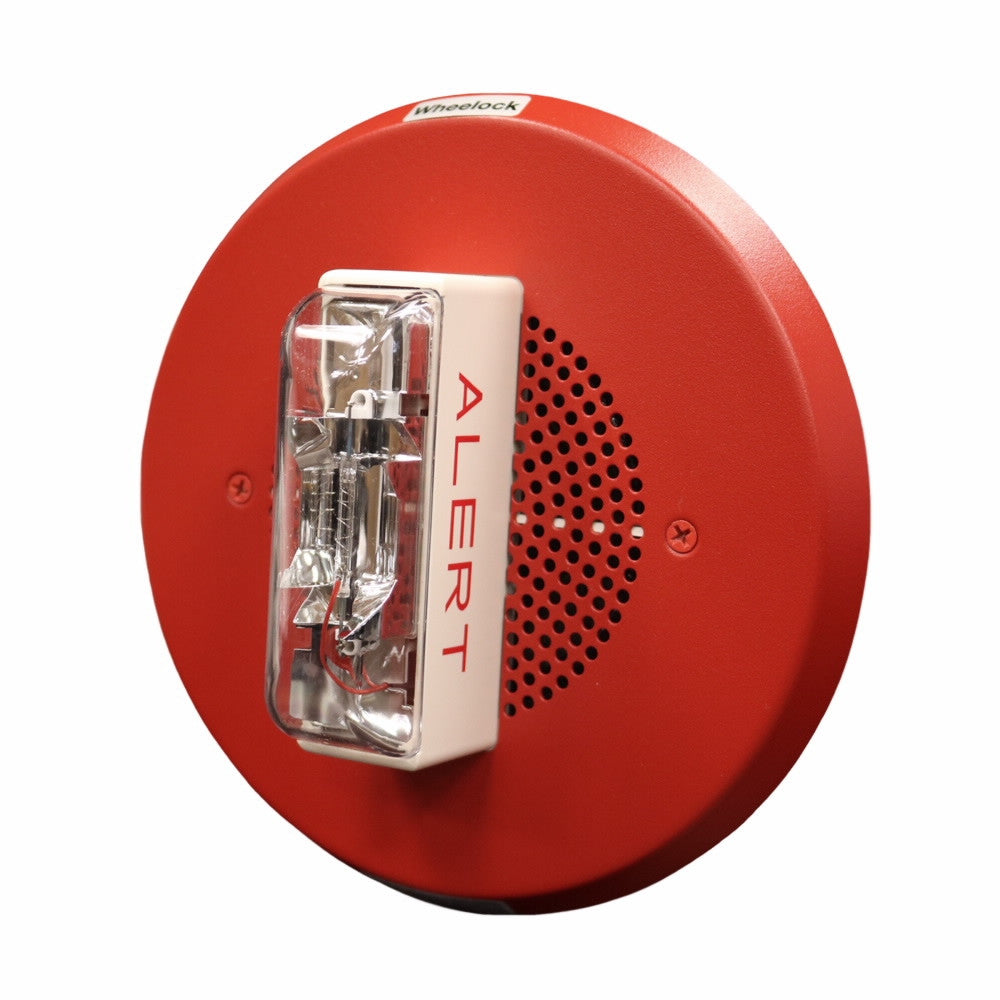

Wheelock E90-24MCC-ALR | Round Ceiling Fire Alarm Speaker Strobe Light 70V / 25V (Xenon Strobe, ALERT lettering)
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Wheelock E90-24MCC-ALR | Round Ceiling Fire Alarm Speaker Strobe Li...
Description
Description
The Wheelock Round Ceiling Fire Alarm Speaker Strobe Light 70V / 25V (Xenon Strobe, ALERT Lettering) E90-24MCC-ALR is an emergency speaker strobe that features high efficiency sound output with dual Voltage (25/70 VRMS) capability, field selectable candela and tap settings and low Current Draw.
Strobe options for the round speaker ceiling mount models include Wheelock patented MCC multi-candela strobe with field selectable Candela Settings of 15/30/75/95.
The speaker strobes provide high Audio Output with clear audibility to meet the critical needs of the life safety industry for effective emergency communications.
Wheelock - E90-24MCC-ALR - Features
- Intelligible Communications
- Efficient design for high intelligibility at minimum wattage across a frequency range of 400 to 4000 HZ
- Easy-to-Install
- Low profile design incorporates speaker Mounting plate for faster and easier installation
- Built - in level adjustment feature and an aesthetic two (2) screw grille cover.
- Quick installation with IN/OUT screw terminals using #12 to #18 AWG wires
- 4” square backbox prevents wire damage
- E90 Optional extender (E90 Ext) is available for Mounting to 4” square backboxes
- Field Selectable Settings
- Ceiling mount models are available with field selectable Candela Settings of 15/30/75/95cd
- Field Selectable Taps
- 1/8 watt up to 2 watts
- 25 or 70 VRMS operation
- Strobe Synchronization Components
- Meet synchronizing standards with Wheelock’s DSM Sync Modules, Power Supplies or SAFEPATH products
- Compliance
- UL 1971, UL 1480
- California State Fire Marshal (CSFM)
- ADA/NFPA/ANSI/OSHA
- FCC Part 15, ICES
Specifications
Specifications
Wheelock - E90-24MCC-ALR - Specifications
| Part Number | E90-24MCC-ALR |
|---|---|
| Product Length/Depth | 2.7 in |
| Product Height | 7.26 in |
| Product Width | 7.26 in |
| Product Weight | 1.894 lb |
| Mounting | Ceiling |
| Housing Color | Red |
| Appliance | Indoor |
| Housing Material | UV stabilized plastic |
| Lettering | ALERT |
| Voltage | 70 V, 25 V |
| Operating Temperature | 33.8°F to 120.2°F (0°C to 49°C) & maximum humidity of 93% |
| Compliance And Standards | UL, FCC, CSFM |
| Lamp Type | Xenon |
| Candela Settings | 15 cd, 30 cd, 75 cd, 95 cd |
| Current Draw (DC) | 0.065/ 0.105/ 0.189 /0.249 |
| Lens Color | Clear |
| Lens Material | Lexan |
| Frequency Range - Min | 400 Hz |
| Frequency Range - Max | 4000 Hz |
| Sound Level (DBA) | Up to 87 dB at 10 ft |
