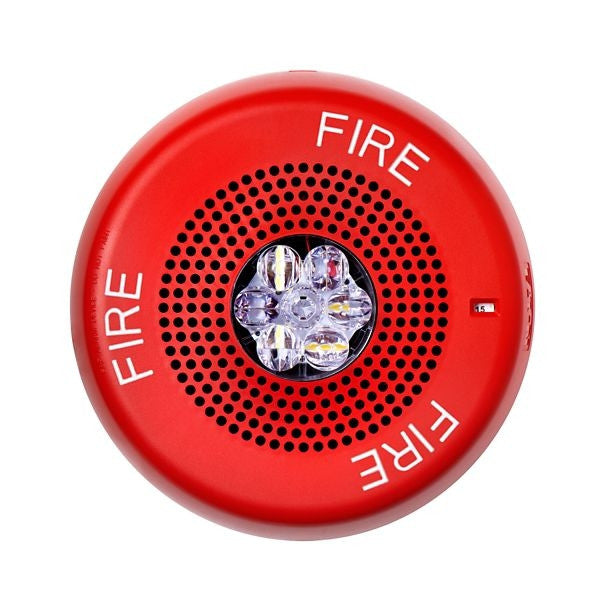

Introducing ELCHSRC Eluxa chime strobe by Eaton – Illuminate Safety and Elegance Indoors!
Discover the exceptional features of Eluxa's LED chime strobe, designed for optimal safety in indoor spaces. With field-selectable 1 Hz, 2 Hz, Coded, and Temporal 3 (T3) modes, Eluxa ensures versatility tailored to your needs.
Our chime strobe, featuring advanced power-saving LED technology, sets the industry standard for the lowest Current Draw across the full candela range. This not only enhances energy efficiency but also significantly reduces installation and operating costs.
Perfect for hospitals and institutions, Eluxa boasts a sleek, low-profile design that seamlessly integrates with any interior décor. Dive into a world of features with Eluxa chime strobes, offering low and high Candela Settings (6) in a single device, adjustable volume, and hassle-free pre-wire/pre-test via a Mounting plate with a hinged feature for easy installation. No tools are needed for setting changes, and with various Mounting options, Eluxa ensures convenience at every step.
Illuminate your space with safety and sophistication – choose Eluxa Chime Strobe by Eaton.
Wheelock - ELCHSRC - Features
- Candela Settings: 15 cd | 30 cd | 75 cd | 110 cd | CA316 | 177 cd
- Compliance & standards: UL | ULC | FM | RoHS | FCC
- Current Draw (DC): 0.022/0.030/0.060/0.086/0.125/0.185
- Audible current: 0.022
- Housing Color: Red
- Housing Material: Plastic
- Indoor/Outdoor: Indoor
- Lamp Type: LED
- Lens Color: Clear
- Lens Material: Lexan
- Lettering: FIRE
- Mounting Method: Ceiling
- Operating mode: Non-Sync | Coded | Sync
- Operating Temperature: 32°F to 122°F (0°C to 50°C) and maximum humidity of 93%
- Sound Level (DBA): 78
- Tones: Code 3 | 1Hz | 2Hz
- Type: Chime Strobe
- Voltage: 24 V
