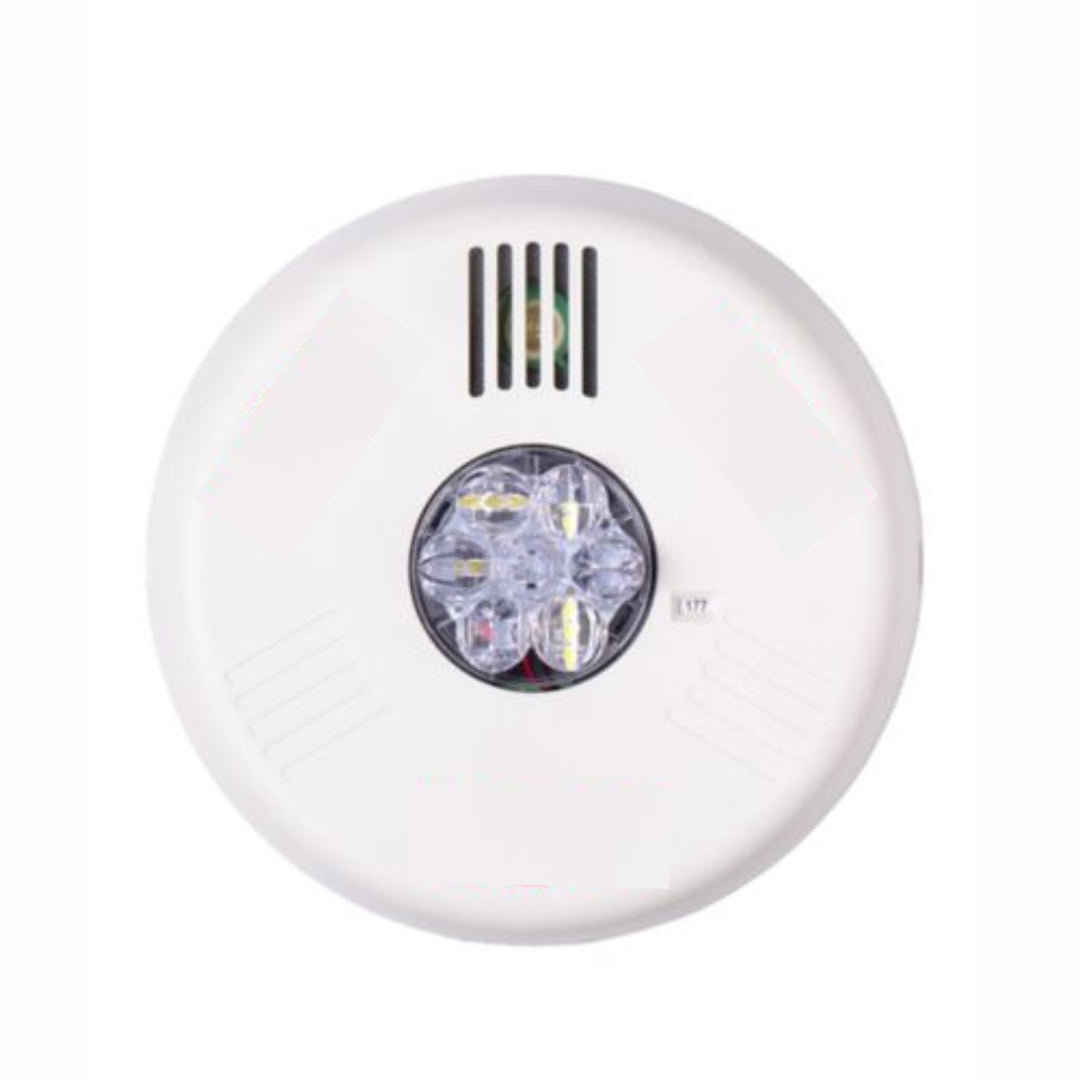

Wheelock ELHSWC-N | ELUXA White Ceiling Fire Alarm Horn Strobe 24V
Description
Description
The Wheelock ELHSWC-N ELUXA White Ceiling Fire Alarm Horn Strobe 24V is one of the best fire alarm and CO alarm options in the market, thanks to the three horn pattern it includes in a single device: Continuous, T3, T3/T4, which not only reduces customers’ inventory but also is an industry first by combining both fire alarm and carbon monoxide (CO) over the same two wires. It also includes six different Candela Settings for the strobe light.
To reduce installation time, Eluxa includes pre-wire/ pre-test via a rigid Mounting plate with hinged feature and no tools needed for setting changes. This fire horn is suitable for 24V. Activation is accomplished through digital communication.
Wheelock - ELHSWC-N - Features
- Compatibility
- UL/ULC listed as compatible with all Fire Alarm Control Panels (FACP) and accessories that have been determined to be compatible with Wheelock RSS strobe-based products and Exceder LED3
- Ability to mix LED and xenon strobes in the same field of view
- Meets stringent synchronizing standards for strobes with Wheelock’s DSM Sync Modules, PS Power Supplies or SAFEPATH products
- Energy efficient
- LED technology provides industry’s lowest Current Draw for a combined high and low candela device
- Fewer power supplies required, smaller wire gage, reduced wire runs
- Low profile design
- One of the smallest, most compact single-gang designs
- Sleek, modern aesthetics with no visible Mounting screws
- 6 Field selectable settings
- Ceiling: 15, 30, 75, 110, 150 or 177 cd
- 3 Horn patterns
- 3 horn patterns: Continuous, T3, and T3/T4; Fire and CO signaling
- Easy-to-install
- Mounting plate included with all models: Convenient capture hinge allows installers to easily hold the device while fastening the single-mount screw in place
- Pre-wire/pre-test capability to check for wiring and ground faults prior to Appliance installation
- Finger slide switches--No tools needed for setting changes
- IN/OUT screw terminals using #12 to #18 AWG wires
- Mounting options include ELSBB, any single-gang backbox and to 4” square with adapter kit for wall models and LSPKBB-C backboxes, 4” square, 1 1/2” or 2 1/8”deep and 4” Octagonal, 1 ½” or 2 1/8”deep for ceiling models
- Compliance & approvals
- NFPA 72 2016 (meets maximum light pulse duration of 20 ms)
- UL 1971, UL 1638, UL 464; ULC-S525, ULC-S526
- California State Fire Marshal (CSFM)
- ADA/NFPA/ANSI/OSHA
Specifications
Specifications
Wheelock - ELHSWC-N - Specifications
| Catalog Number | ELHSWC-N |
|---|---|
| Product Height | 1.91 in |
| Product Diameter | 6.23 in |
| Product Weight | .7 lb |
| Warranty | 3 year |
| Mounting Method | Ceiling |
| Housing Color | White |
| Indoor/Outdoor | Indoor |
| Housing Material | Plastic |
| Lettering | No Lettering |
| Voltage | 24 V |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) and maximum humidity of 93% |
| Compliance And Standards | UL, ULC, RoHS, FCC |
| Lamp Type | LED |
| Lens Color | Clear |
| Candela Settings | 15 cd, 30 cd, 75 cd, 110 cd, 150 cd, 177 cd |
| Current Draw (DC) | 0.022|0.030|0.060|0.086|0.125|0.185 |
| Lens Material | Lexan |
| Sound Level (DBA) | 86 |
