Brand: Wheelock | SKU: 10421541

Wheelock ELMTSR-A | Multitone Horn Strobe Fire Alarm 24 V (Agent Lettering)

Regular price $150.47
Shipping calculated at checkout.
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

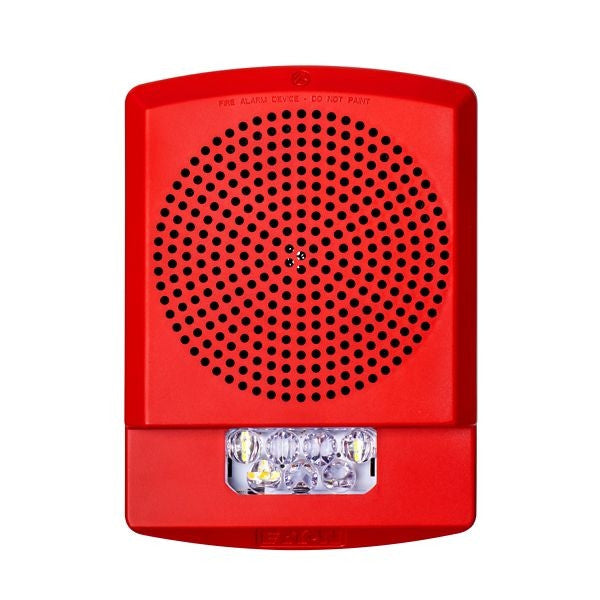

Wheelock ELMTSR-A | Multitone Horn Strobe Fire Alarm 24 V (Agent Lettering)

Improve your business with one of the best fire alarms in the market, the Wheelock Multitone Horn Strobe Fire Alarm 24 V (Agent Lettering) ELMTSR-A Eluxa. Featuring LED technology, is designed for indoor use, operates at 24V and offers a range of Candela Settings, including 15, 30, 75, 110, 135, and 185 cd.

The Wheelock Multitone Horn Strobe Fire Alarm 24 V (Agent Lettering) ELMTSR-A Eluxa from Eaton offer eight distinct alerting sounds within a single device to meet various signaling requirements. These nationally and internationally recognized alerting sounds include Horn, Bell, March Time Horn, Code-3 Tone, Code-3 Horn, Slow Whoop, Siren, or Hi/Lo Tone. The Code-3 horn and tone patterns are engineered to comply with NFPA/ANSI Temporal Pattern specifications without the need for additional equipment.

The strobe models of the Eluxa series lead the industry in low Current Draw due to their advanced power-saving LED technology, which helps reduce overall installation and operating costs. The Eluxa devices are feature-rich, offering six Candela Settings in one device, two sound output levels (Standard dBA and High dBA), adjustable volume and tone control, pre-wire/pre-test capabilities via a Mounting plate with a hinged feature for ease of installation, and no tools needed for setting changes.

Wheelock - ELMTSR-A - Features

  • Candela Settings: 4 cd | 20 cd | 25 cd | 35 cd | 40 cd | 45 cd | 50 cd | 65 cd | 15 cd | 30 cd | 75 cd | 110 cd | 150 cd | 177 cd | 5 cd | 8 cd | 10 cd | 12 cd
  • Compliance & standards: UL | ULC | FM | RoHS | FCC
  • Current Draw (DC): 0.022/0.030/0.060/0.086/0.125/0.185
  • Housing Color: Red
  • Housing Material: Plastic
  • Indoor/Outdoor: Indoor
  • Lamp Type: LED
  • Lens Color: Amber
  • Lens Material: Lexan
  • Lettering: Agent Lettering
  • Mounting Method: Wall
  • Operating Temperature: 32°F to 122°F (0°C to 50°C) and maximum humidity of 93%
  • Sound Level (DBA): 92dBA at 10ft Reverberant | 97dBA at 10ft Anechoic
  • Tones: Code-3 Tone | Bell | March Time Horn | Code-3 Horn | Slow Whoop | Siren | TO315 | Horn
  • Type of horn strobe: Multitone horn strobe
  • Voltage: 24 V
