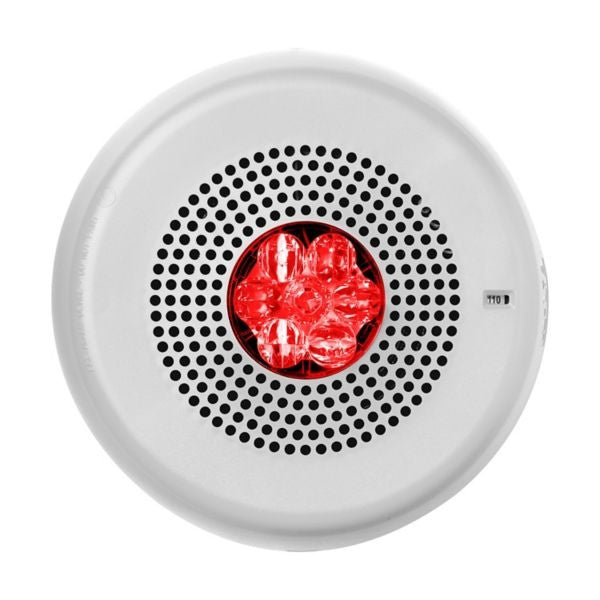

Wheelock ELMTSWC-NR | Multitone Fire Horn Strobe 24V (White, Ceiling mounting, Red Lens, No Lettering)

Regular price $155.12
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

Wheelock ELMTSWC-NR | Multitone Fire Horn Strobe 24V (White, Ceiling mounting, Red Lens, No Lettering)

Improve your business with one of the best fire alarms in the market, Wheelock Multitone Fire Horn Strobe 24V (White, Ceiling Mounting, Red Lens, No Lettering) ELMTSWC-NR Eluxa. Featuring LED technology, is designed for indoor use and wall Mounting. It comes in a red finish with a clear lens and does not include any Lettering. This device operates at 24V and offers a range of Candela Settings, including 15, 30, 75, 110, 135, and 185 cd.

The Wheelock Eluxa Multitone Horn Strobes (ELMTS/ELMTSC) by Eaton offer eight distinct alerting sounds within a single device to meet various signaling requirements. These nationally and internationally recognized alerting sounds include Horn, Bell, March Time Horn, Code-3 Tone, Code-3 Horn, Slow Whoop, Siren, or Hi/Lo Tone. The Code-3 horn and tone patterns are engineered to comply with NFPA/ANSI Temporal Pattern specifications without the need for additional equipment.

The strobe models of the Eluxa series lead the industry in low Current Draw due to their advanced power-saving LED technology, which helps reduce overall installation and operating costs. The Eluxa devices are feature-rich, offering six Candela Settings in one device, two sound output levels (Standard dBA and High dBA), adjustable volume and tone control, pre-wire/pre-test capabilities via a Mounting plate with a hinged feature for ease of installation, and no tools needed for setting changes.

Wheelock - ELMTSWC-NR - Features

  • Candela Settings: 4 cd | 20 cd | 25 cd | 35 cd | 40 cd | 45 cd | 50 cd | 65 cd | 15 cd | 30 cd | 75 cd | 110 cd | 150 cd | 177 cd | 5 cd | 8 cd | 10 cd | 12 cd
  • Compliance & standards: UL | ULC | FM | RoHS | FCC
  • Current Draw (DC): 0.022/0.030/0.060/0.086/0.125/0.185
  • Housing Color: White
  • Housing Material: Plastic
  • Indoor/Outdoor: Indoor
  • Lamp Type: LED
  • Lens Color: Red
  • Lens Material: Lexan
  • Lettering: No Lettering
  • Mounting Method: Ceiling
  • Operating Temperature: 32°F to 122°F (0°C to 50°C) and maximum humidity of 93%
  • Sound Level (DBA): 92dBA at 10ft Reverberant | 97dBA at 10ft Anechoic
  • Tones: Code-3 Tone | Bell | March Time Horn | Code-3 Horn | Slow Whoop | Siren | TO315 | Horn
  • Type of horn strobe: Multitone horn strobe
  • Voltage: 24 V
