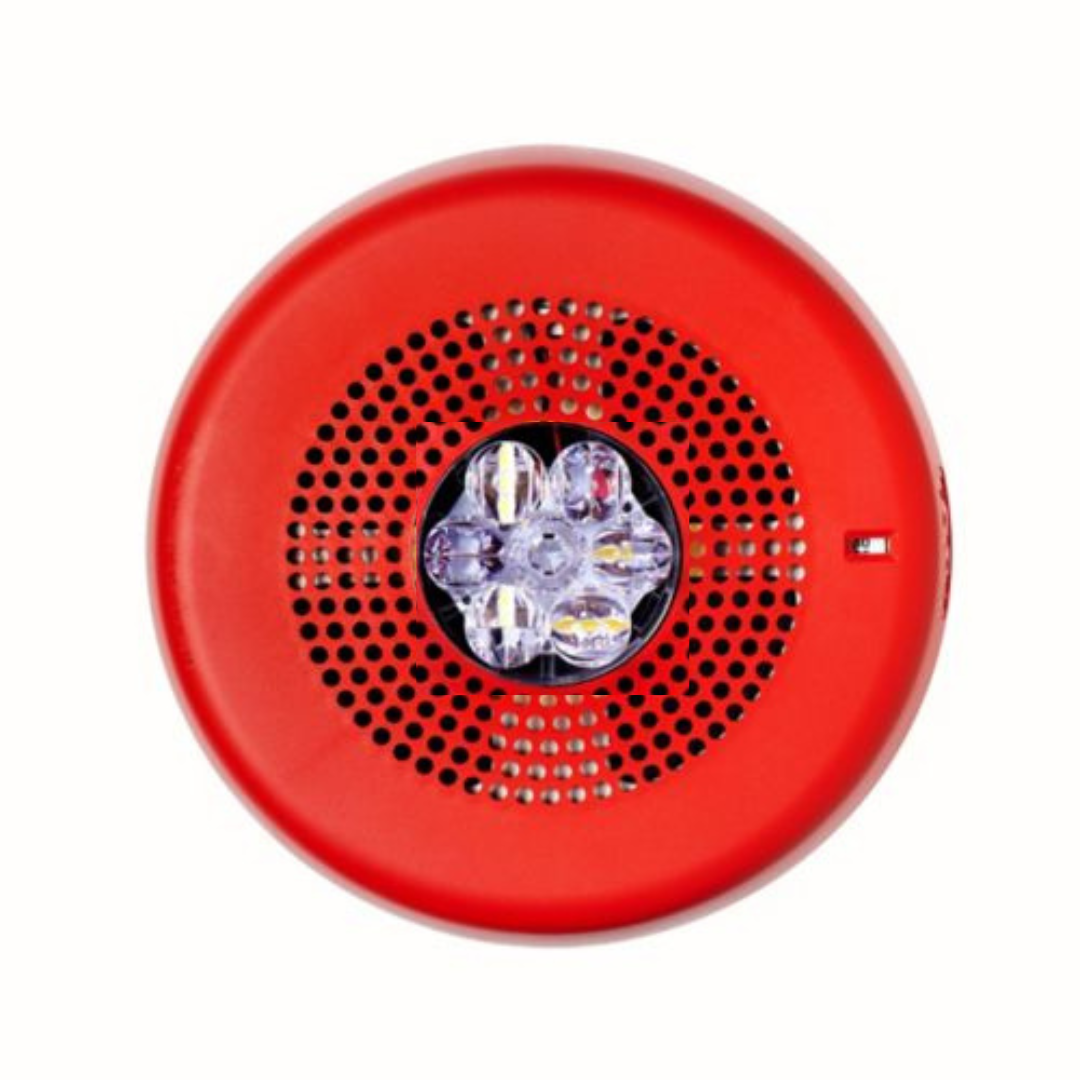

Wheelock ELSPSTRC-N | No Lettering Ceiling Speaker Strobe 25V / 70V (High Fidelity Speaker)
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Wheelock ELSPSTRC-N | No Lettering Ceiling Speaker Strobe 25V / 70V...
Description
Description
The Wheelock No Lettering Ceiling Speaker Strobe 25V / 70V (High Fidelity Speaker) ELSPSTRC-N ELUXA is a high fidelity ceiling speaker with an integrated strobe light that provides leading intelligibility with crisp, and clear voice messages, ideal for emergency communications, mass notification, and voice evacuation.
Designed for high fidelity sound output, Wheelock’s Eluxa speaker line not only features the widest frequency response range in the industry, but also an advanced power saving LED technology with a full range of high and low Candela Settings for indoor wall and ceilingmount applications.
Clear, concise and intelligible voice messages that communicate how people should respond in an emergency are critical for life safety. We understand that you need a solution that not only meets your customer’s intelligibility and reliability requirements but also provides overall system cost savings. That's why ELUXA series offers one of the best fire alarm speaker strobes in the market.
The Eluxa speaker strobes and speakers feature one of the industry’s smallest footprints and a sleek, modern, low-profile design that will please building owners. It includes 5 field-selectable tap settings, 6 field selectable Candela Settings, and convenient walland ceiling-Mounting options for both new and retrofit construction. Amber lens speaker strobes and special Lettering are available.
Wheelock - ELSPSTRC-N - Features
- No Lettering
- Mounting Settings
- Ceiling: 15, 30, 75, 110, 150, 177 cd
- High fidelity sound output
- High intelligibility at minimum wattage across a frequency range of 300 to 8000 Hz
- Energy efficient
- LED technology provides industry’s lowest Current Draw
- Fewer power supplies required, smaller wire gage, reduced wire runs
- Low-profile design
- Smallest footprint with sleek, modern aesthetics
- 5 Field selectable taps
- 1/8 watt up to 2 watts (5W - 70V)
- 25 or 70 VRMS operation
- Easy-to-install
- Mounting plate included with all models: Convenient capture hinge allows installers to easily hold the device while fastening the single-mount screw in place
- Pre-wire/pre-test capability to check for wiring and ground faults prior to Appliance installation
- Finger slide switches--No tools needed for setting changes
- Built-in level adjustment feature and snap-on grille cover
- IN/OUT screw terminals using #12 to #18 AWG wires
- Mounting options include ELSPKBB backboxes and 4” square, 2 1/8” deep backboxes for wall models and LSPKBB-C backboxes and 4” square, 2 1/8” deep backboxes for ceiling models. A shallow speaker backbox makes these ideal for retrofit applications.
- Compliance
- NFPA 72 2016 - 20 ms flash duration requirements
- UL 1971, UL 1638, UL 1480; ULC-S526, ULC-S541
- California State Fire Marshal (CSFM)
- Low frequency requirements of UL 464 (520 Hz) to meet NFPA’s 520 Hz tone requirements for sleeping areas
- ADA/NFPA/ANSI/OSHA
Specifications
Specifications
Wheelock - ELSPSTRC-N - Specifications
| Catalog Number | ELSPSTRC |
|---|---|
| Product Height | 3.64 in |
| Product Diameter | 6.2 in |
| Product Weight | 1.86 lb |
| Mounting Method | Ceiling |
| Housing Color | Red |
| Indoor/Outdoor | Indoor |
| Housing Material | Plastic |
| Lettering | FIRE |
| Voltage | 24 V, 25 V, 70 V |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Compliance And Standards | UL, ULC, FCC |
| Lamp Type | LED |
| Candela Settings | 15 cd, 30 cd, 75 cd, 95 cd, 150 cd, 177 cd |
| Current Draw (DC) | 0.022|0.030|0.060|0.086|0.125|0.185 |
| Lens Color | Clear |
| Lens Material | Lexan |
| Frequency Range - Min | 300 Hz |
| Frequency Range - Max | 8000 Hz |
| Sound Level (DBA) | 75/79/82/85/87 |
Documents and Downloads
Documents and Downloads
