Wheelock ET-1080-W | Fire Alarm Speaker (White, Vandalproof, No let...
Description
Description

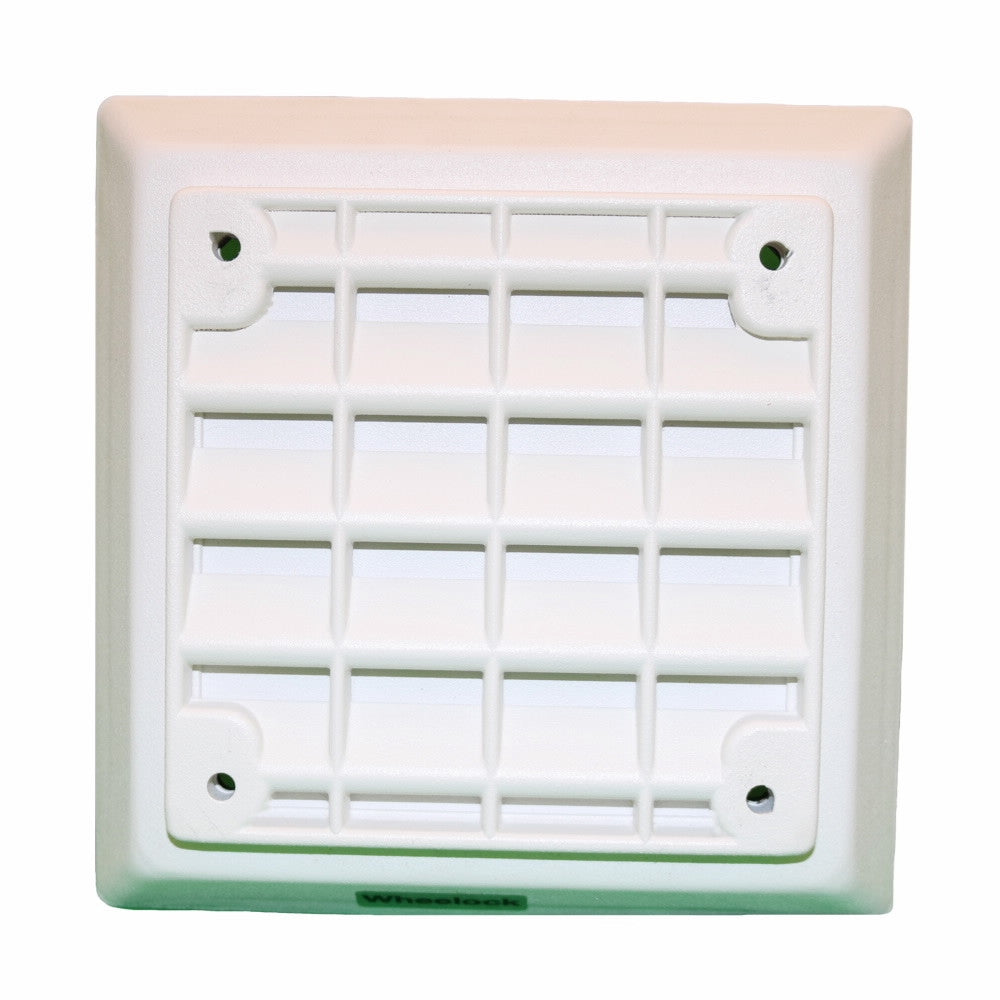

The Wheelock Fire Alarm Speaker (White, Vandalproof, No Lettering) ET-1080-W is a rugged, high performance speaker specifically designed to meet the critical needs of the life safety industry for voice and tone signaling.
Designed with compact, aesthetically pleasing package styles, this emergency speaker covers both 25 and 70 volt audio systems. The high-efficiency design provides improved voice clarity and higher sound output for typical low frequency fire evacuation signal, such as the “slow whoop” and “temporal Code-3”.
Wheelock - ET-1080-W - Features
- Designed to meet or exceed NFPA/ANSI Standards and ADA Accessibility Guidelines
- High efficiency speakers designed for maximum output at minimum wattage across 400 to 4000 Hz frequency range
- Field selectable taps for 25 or 70 VRMS operation from 1/8 watt up to 8 watts in 3 dB steps
- Vandal resistant die cast grilles
- Sealed back speaker construction for extra protection and improved audibility
- Fast installation with IN/OUT screw terminals using #12 to #18 AWG wring
- Compliance with RFI limits in FCC Part 15, Class “B” for compatibility with sensitive detection and communication circuits
- Audio inputs include a 10 uF blocking capacitor for compatibility with DC supervision of Speaker Notification Appliance Circuits
Specifications
Specifications
Wheelock - ET-1080-W - Specifications
| Part Number | ET-1080-W |
|---|---|
| Product Length/Depth | 1 in |
| Product Height | 5.4 in |
| Product Width | 5.4 in |
| Product Weight | 2.4 lb |
| Mounting Method | Wall or Ceiling |
| Housing Color | White |
| Indoor/Outdoor | Indoor |
| Housing Material | Cast metal |
| Lettering | No Lettering |
| Voltage | 25 V, 70 V |
| Compliance And Standards | MEA, UL, BFP, CSFM, FM |
