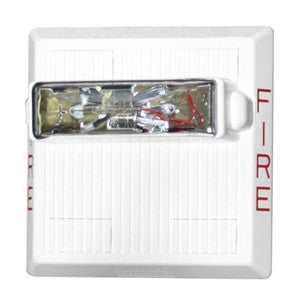

Wheelock HS4-24MCCH-FW | HS4 Series White Horn Strobe 115/177

Key Features

• Approvals include: UL Standard 1971, UL Standard 464, New York City (MEA), California State Fire Marshal (CSFM) and Factory Mutual (FM). See approvals by model in Specifications and Ordering Information
• ADA/NFPA/UFC/ANSI compliant
• Complies with OSHA 29, Part 1910.165
• Field Selectable Candela Settings: Wall Mount 15/30/75/110cd or 135/185cd (Multi-Candela models) or 1575cd (single candela model) and Ceiling Mount 15/30/75/95cd or 115/177cd
• Selectable Continuous Horn or Temporal (Code 3)
• 3 Selectable dBA settings of 90/95/99 dBA in both tones
• 4-Wire Horn Strobe Appliance allows for separate operation of the horn and strobe circuits
• 24 VDC models with 16 to 33 VDC UL “Regulated Voltage” using filtered DC or unfiltered VRMS input voltage
• Wall mount flush to standard 4-inch square or double-gang boxes or surface mount to IOB backbox
• Synchronize using the Wheelock Sync Modules or panels with built-in sync protocol Wheelock Patented Sync Protocol
• Fast installation with IN/OUT screw terminals using #12 to #18 AWG wires
