Wheelock SP40SE | SAFEPATH Emergency Mass Notification System, Pagi...
Description
Description

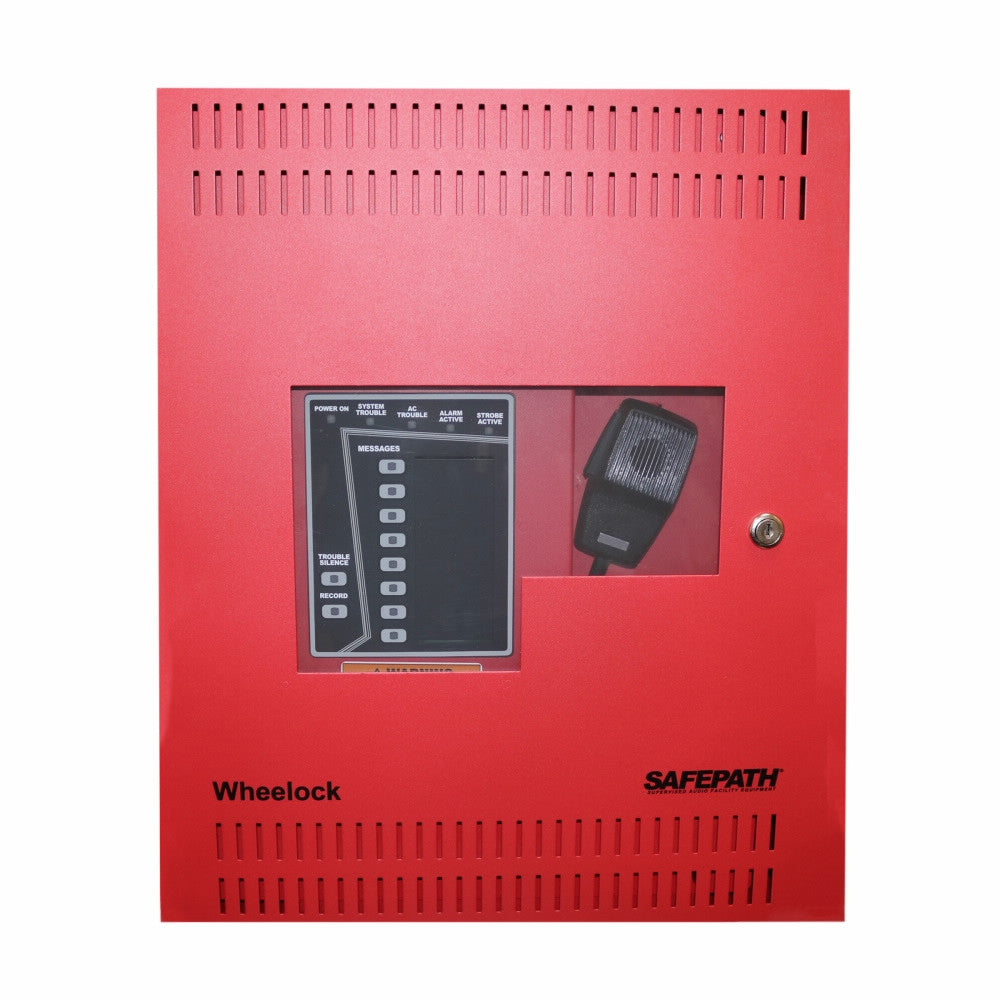

The Wheelock SAFEPATH Emergency Mass Notification System, Paging System & Background Music 240V SP40SE is a supervised in-building Fire Alarm Mass Notification System for emergency communication with 24 VDC battery backup. The multi-use system can function as a voice evacuation, mass notification, paging, and background music system per NFPA 72 combination systems.
SAFEPATH integrates with fire alarm systems and provides full control of building notification Appliances such as loudspeakers and strobes. This single channel system is capable of delivering 40 watts of supervised high fidelity Audio Power and 2 amps of Supervised 24 Vdc Synchronized Strobe Power. It’s unique supervision method allows for full system supervision even during background music.
Wheelock - SP40SE - Features
- Approvals & Compliance
- UL 864, UL 1711, UL 2017 (code 4), UL 864 (code 3), and the low frequency requirements of UL 464 (520 Hz); California State Fire Marshal (CSFM); New York City (MEA); FCC Part 15; ADA compliant
- OSHA 1910.165 compliant; System does not require reliability inspections every two months or required spare parts inventory, saving the building owner costly inspection fees
- Multi-function system: voice evacuation, mass notification, general paging per NFPA 72, supervised background music capabilities, noise masking, and low frequency tone requirements for sleeping room applications
- Fully supervised: 2 amps of supervised 24 VCD strobe power per circuit; Supervised NAC and audio circuits; On-board Diagnostics & trouble reporting circuits
- Messaging: Built in Tones, standard messages for different announcements, custom messages available
- Voice evacuation
- 8 digitally pre-recorded voice messages
- Live microphone override
- Selectable pre-Tones for messages
- Supervised NAC speaker and strobe circuits
- Paging
- Easily interfaces with most existing phone system page port
- Automatically mutes BGM
- Frequency response 275–6.5 kHz
- Night ringer or security alert connection
- Background music
- Capable of broadcasting from a supplied background music (BGM) source
- Unique supervision method allows for full system supervision even during background music
- Line level input for music source
- Frequency response 100 Hz–15 KHz Strobe inputs and activation
- 2 Amps of 24 VDC supervised strobe power with built-in Wheelock sync protocol. Power limited.
- Strobe output is selectable for control of Wheelock sync protocol or non-sync operation
- Strobe terminals have pass-through capability for Wheelock sync or non-sync operation
- Any of the 8 messages can be dip switch selected to activate strobes
- Microphone activation can be dip switch selected to activate strobes
- Auxiliary activation (remote microphone) can be dip switch selected to activate strobes
- 24 VDC supervised and synchronized strobe power can be expanded to meet the requirements of the installation via connecting to optional Wheelock power boosters
- Speaker output
- 40 watts of Supervised Audio Power
- Speaker outputs: 25V or 70.7V power limited
- Power supply and batteries
- 24 VDC, 33AH max rechargeable battery back-up power circuitry
- Batteries can be housed in the enclosure. Up to two BAT-1212, 12 volt, 12 ampere hour batteries can fit in the enclosure. Actual battery size required will depend on speaker and/or strobe load. (Batteries are sold separately.)
Specifications
Specifications
Wheelock - SP40SE - Specifications
| Catalog Number | SP40SE |
|---|---|
| Product Length/Depth | 6 in |
| Product Height | 21 in |
| Product Width | 16 in |
| Product Weight | 36 lb |
| Housing Color | Red |
| Voltage | 240 V |
| Housing Material | Steel enclosure |
| Integration With The Following | Paging/telephone systems, Background music systems |
| Compliance And Standards | UL 1711, FCC, MEA, CSFM, UL 864 |
| Digital Voice Messages | 8 |
| Frequency Response - Voice - Min | 275 Hz |
| Frequency Response - Voice - Max | 6.5 Kilo Hertz |
| Frequency Response - Background Music - Min | 100 Hz |
| Frequency Response - Background Music - Max | 15 Kilo Hertz |
| Audio Power | Expandable to 5280 W, 40 W |
| Audio Output | 70 V, 25 V, 100 V |
| Supervised Audio Power | 40 W |
| Standby Current Draw | 130 mA |
| Alarm Current Draw | 4.7 A |
| Supervised 24 Vdc Synchronized Strobe Power | 2 A |
