Williams JHWCC-8AAW | Heavy Service C-Clamp, Deep Throat Design, St...
Description
Description

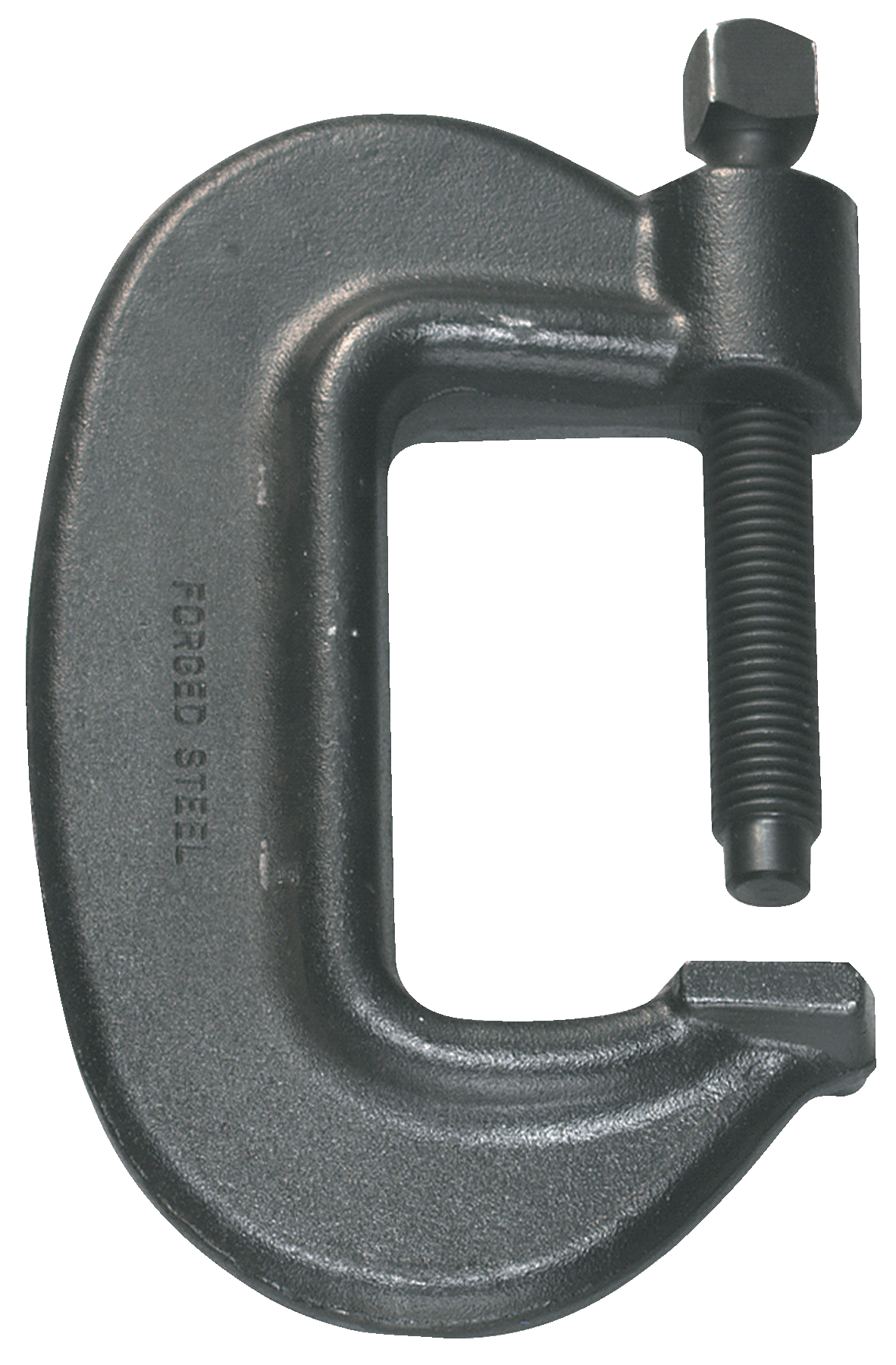

Especially designed for heavy duty service, frames are drop-forged and heat-treated for maximum strength and reduced springing
Screws are made of special grade steel and are heat-treated for added strength not found in typical case-hardened screws
To tighten, the square headed screw must be turned with a wrench
Ideal for the most demanding applications such as construction and heavy industry
Square head screw allows tightening with wrench for extra heavy duty clamping requirements
Greater anvil surface for gripping larger work pieces and for greater stability
Williams - JHWCC-8AAW - Features
- Especially designed for heavy duty service, frames are drop-forged and heat-treated for maximum strength and reduced springing
- Screws are made of special grade steel and are heat-treated for added strength not found in typical case-hardened screws
- To tighten, the square headed screw must be turned with a wrench
Specifications
Specifications
Williams - JHWCC-8AAW - Product Categories
- Hardware
- Tools and Supplies
- Hand Tools
Williams - JHWCC-8AAW - Specifications
| Category | Clamps And Vices |
|---|---|
| Grade | Duty - Heavy |
| Material | Metal |
| Product Type | Clamp - C |
| Size / Capacity | 8-1/2" |
| UNSPSC Code | 27112120 |
Williams - JHWCC-8AAW - Technical Details
| Maximum Clamping Capacity | 8-1/2 in |
|---|---|
| Minimum Capacity | 4 in |
| Throat Depth From Center | 3-11/16 in |
| Exterior Body Width | 8-1/2 in |
| Shank Diameter (in) | 1-3/32 in |
| Minimum Test Load | 31250 lb |
| Screw Length Under Head | 7-1/8 in |
| Length | 16.25 in |
| Width (in) | 7.75 in |
| Weight (lb) | 24.53 lb |
