Wiremold 2448-FW | 2400 Device Box Fitting
Description
Description

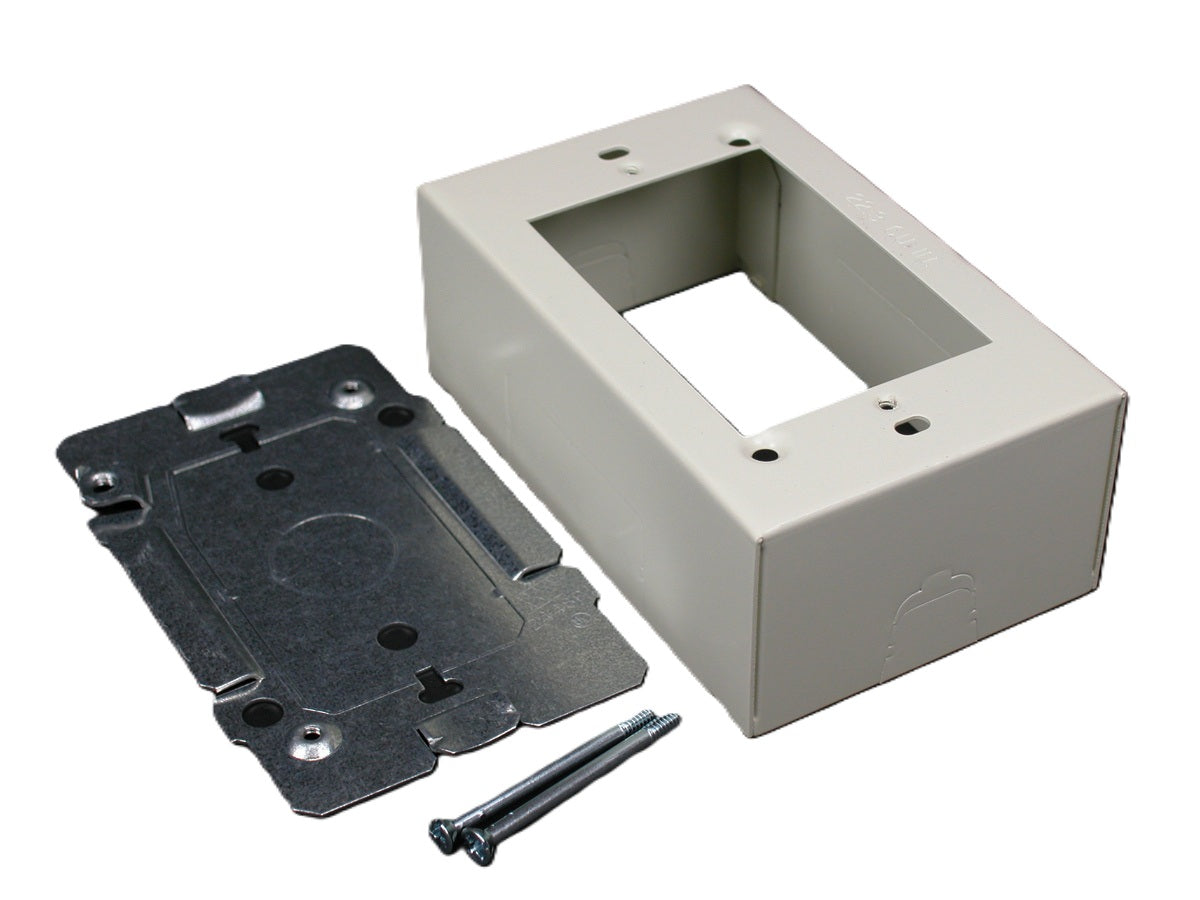

One-gang device box. Cover has twistout for 2400 Series Raceway on each side, and one twistout for 500 and 700 Series Raceway on the top and bottom. Base has knockout to enable extension from existing single-gang, flush wall box and 1/2'' trade size KOs. Accepts industry standard faceplates for electrical and communication devices. NOTE: Accepts NEMA single-gang standard faceplates. Certified to Canadian Safety Standards for sale in Canada. When ordering this product for Canada, add ''C'' to the beginning of the part number to denote Canadian versions, i.e. ''CV2444'' or ''C2444-FW''.
Wiremold - 2448-FW - Features
- One-gang device box. Cover has twistout for 2400 Series Raceway on each side, and one twistout for 500 and 700 Series Raceway on the top and bottom.
- Base has knockout to enable extension from existing single-gang, flush wall box and 1/2'' trade size KOs.
- Accepts industry standard faceplates for electrical and communication devices. NOTE: Accepts NEMA single-gang standard faceplates.
- Certified to Canadian Safety Standards for sale in Canada. When ordering this product for Canada, add ''C'' to the beginning of the part number to denote Canadian versions, i.e. ''CV2444'' or ''C2444-FW''.
Specifications
Specifications
Wiremold - 2448-FW - Specifications
| Product Height US | 1.75 in |
|---|---|
| Product Length US | 2.875 in |
| Product Width US | 4.625 in |
| Product Weight US | 0.548 lb |
| Knockout Size | 1/2 in |
| Indoor/Outdoor | Indoor |
| Is Pre-Wired | No |
| Number of Gangs | 1 |
| Voltage | 600.0 V |
