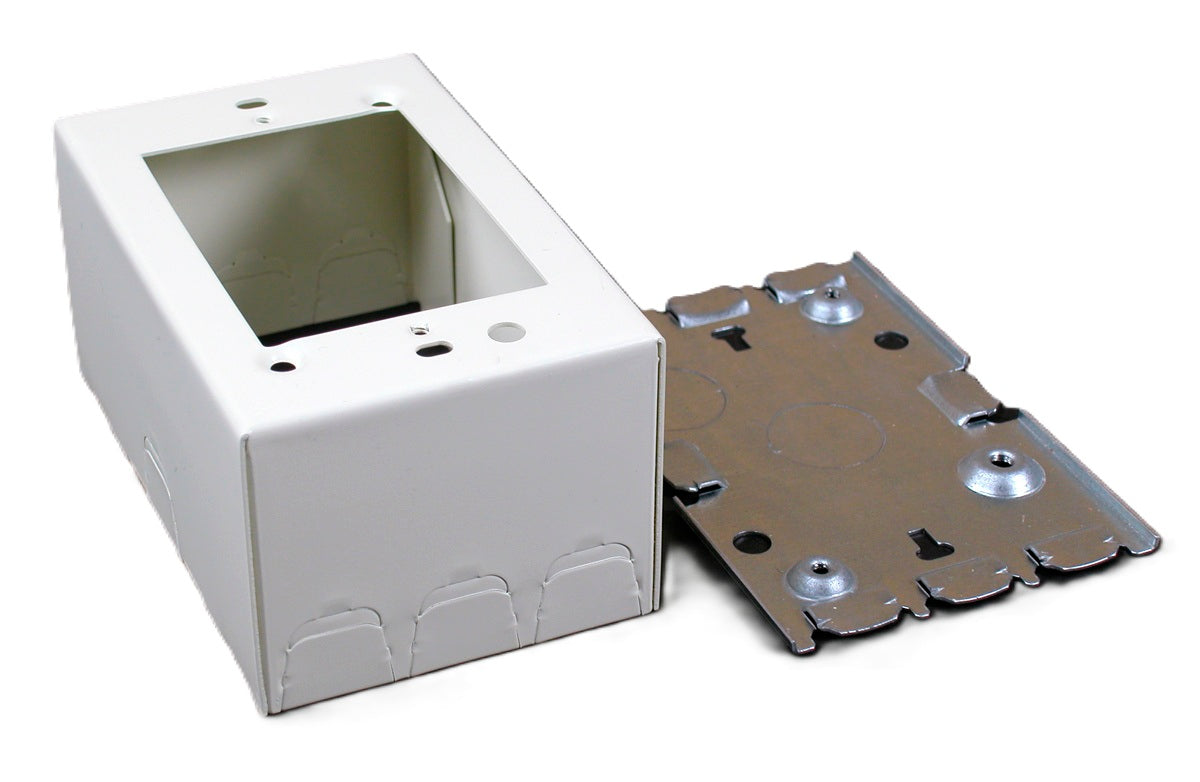

Wiremold 5747WH | 500/700 Single-Gang Shallow Switch and Receptacle Box Fitting
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Wiremold 5747WH | 500/700 Single-Gang Shallow Switch and Receptacle...
Description
Description
For standard shallow switches and receptacles including single-gang combination devices. Base has two 1/2'' trade size KOs. Larger gang boxes available by special order. Single-gang: 4 5/8'' L x 2 7/8'' W (117mm x 73mm). Accepts NEMA single-gang standard faceplates. NOTE: Certified to Canadian Safety Standards for sale in Canada. When ordering these products, change the ''V'' color prefix to ''vc'' or the ''WH'' color suffix to ''WHC'' to denote the Canadian versions.
Wiremold - 5747WH - Features
- For standard shallow switches and receptacles including single-gang combination devices. Base has two 1/2'' trade size KOs. Larger gang boxes available by special order.
- Single-gang: 4 5/8'' L x 2 7/8'' W (117mm x 73mm). Accepts NEMA single-gang standard faceplates.
- NOTE: Certified to Canadian Safety Standards for sale in Canada. When ordering these products, change the ''V'' color prefix to ''vc'' or the ''WH'' color suffix to ''WHC'' to denote the Canadian versions.
Specifications
Specifications
Wiremold - 5747WH - Specifications
| Product Depth US | 1.375 in |
|---|---|
| Product Length US | 4.62 in |
| Product Width US | 2.875 in |
| Product Weight US | 0.52 lb |
| Knockout Size | 1/2 in |
| Indoor/Outdoor | Indoor |
| Is Pre-Wired | No |
| Number of Gangs | 1 |
| Voltage | 600.0 V |
